Building a Drawer: The Versatility of Popover

How far can you get building a UI drawer with as little possible? What tricks and new APIs might be useful?

Oct 30, 2024

Recently, I got a request for a CSS-only drawer with “drag” support on mobile. This is tricky, but newer APIs like Popover make clever solutions possible. For example, morphing desktop navigation into a mobile drawer. So far can we get with some of these cutting-edge APIs?

The trick for the morph: Override user agent styles on desktop and lean into them on mobile styling the Popover as a drawer.

Popover API

If you haven't played with the Popover API, this is the "Hello World":

<div popover id="pop">I'm the Popover</div>
<button popovertarget="pop" popovertargetaction="toggle">Open Popover</button>

It promotes an element to the top layer (no z-index needed) with free light dismiss and a styleable ::backdrop.

No JavaScript required.

How far can CSS take you?

You can get far using a Popover and CSS.

Click to open the drawer. Click off or use the esc key to dismiss. Some CSS and you can transition the entry/exit. Only Firefox is left to go for @starting-style support.

.drawer {
  /* This acts like a holding animation */
  transition-property: display;
  transition-behavior: allow-discrete;
  transition-duration: var(--duration);
}

.drawer__content {
  transition-property: translate;
  transition-duration: var(--duration);
  transition-timing-function: var(--ease);
  translate: 0 100%;
}

.drawer:popover-open .drawer__content {
  translate: 0 0;
  @starting-style {
    translate: 0 100%;
  }
}

You could handle missing support with some WAAPI or at the very least using Element.getAnimations and toggling some classNames. Do not use a setTimeout and hope for the best.

Gestures

How much can we get out of the browser for free? For a draggable drawer, CSS scroll-snap can do a lot.

Use a viewport-sized Popover, and put the drawer in a scroll container that uses scroll-snap. Use snap anchors (with pointer-events: none) to make the drawer snap into place.

This trick lets touch devices "drag" for free, while the desktop needs a few lines of JavaScript to update the scroll position on drag.

.drawer__scroller {
  height: 100%;
  width: 100%;
  display: flex;
  flex-direction: column;
  align-items: center;
  overflow-y: auto;
  scroll-snap-type: y mandatory;

  /* Acts as a buffer */
  &::after {
    content: '';
    width: 100%;
    height: 100svh;
    order: -1;
    flex: 1 0 100svh;
  }
}
/* The Anchors */
.drawer__anchors {
  pointer-events: none;
  position: absolute;
  inset: 0;
  display: flex;
  flex-direction: column;
  justify-content: space-between;
}

.drawer__anchor {
  height: 50px;
  width: 100%;
  scroll-snap-align: end;
  &:first-of-type {
    translate: 0 -100%;
  }
}

Now you can slide the drawer up and down, but it doesn't close when you slide it down. We need some JavaScript.

A new event, scrollsnapchange is perfect for us. When the snap changes, close the Popover if we've scrolled the drawer out.

scroller.addEventListener('scrollsnapchange', () => {
  if (scroller.scrollTop === 0) {
    drawer.dataset.snapped = true
    drawer.hidePopover()
  }
})
// handle removing the snapped tag and setting up IntersectionObserver
drawer.addEventListener('toggle', (event) => {
  if (event.newState === 'closed') {
    drawer.dataset.snapped = false
  }
  if (event.newState === 'open' && !('onsrollsnapchange' in window)) {
    if (!observer) observer = new IntersectionObserver(callback, options)
    observer.observe(topAnchor)
  }
}

Note:: We use dataset to manage when transitions should or should not happen in our CSS.

The Popover API gives you access to a toggle event so you can see the state of a Popover (You also get a beforetoggle event).

If there's no onscrollsnapchange support, use an IntersectionObserver to do the job.

Scroll-Driven Details

Now the mechanics are in place, we can have some fun. What about that action sheet effect where the body behind scales down?

We're using scroll so you could use CSS scroll-driven animation to style the backdrop as we move the drawer.

By driving the value of some CSS custom properties, you can animate the backdrop styling. For browsers where scroll-driven animations aren't supported, we can use a trick where we kick off a requestAnimationFrame on scroll.

@supports (animation-timeline: scroll()) {
  :root {
    timeline-scope: --drawer;
  }
  :root:has(.drawer:popover-open) {
    --closed: 1;
    animation: open both linear reverse;
    animation-timeline: --drawer;
    animation-range: entry;
    main { --opened: 1; }
  }
  .drawer__slide {
    view-timeline: --drawer;
  }
  @keyframes open {
    0% {
      --closed: 0;
    }
  }
}
main {
  --diff: calc(var(--opened) * var(--closed));
  scale: calc(
    1 - ((var(--opened) * 0.04) - (var(--diff) * 0.04))
  );
}

Note:: This worked great on the body in Chromium but broke in Safari. Looks like transitioning from the top layer with allow-discrete doesn't work as expected. For this reason, we're using main as the backdrop and scaling that down instead.

Visual Viewport and Software Keyboards

Using values like 100svh or 100dvh for layout is great but they don't adjust for on-screen keyboards. This means our drawer could get covered when we try to get user input.

As of Chrome 108, you can use the interactive-widget=resize-contents key to resize both the Visual and Layout Viewports. But it doesn't work on iOS Safari. To get around this, use the visualViewport API to listen for the offset and resize the drawer via CSS. The idea is that you never want your drawer to get cut off because the keyboard pushed it up above the top of your screen:

const handleResize = () => {
  document.documentElement.style.setProperty(
    '--viewport-offset',
    window.visualViewport.offsetTop
  )
}
window.visualViewport?.addEventListener('resize', handleResize)

.drawer__content {
  max-height: calc(95% - (var(--viewport-offset, 0) * 1px));
}

Great!

Recommend this article about “Dealing with the Visual Viewport”. It is up to you how you handle the Visual Viewport based on your design. This post on web.dev does a good job of laying out different behaviors.

The fun stuff!

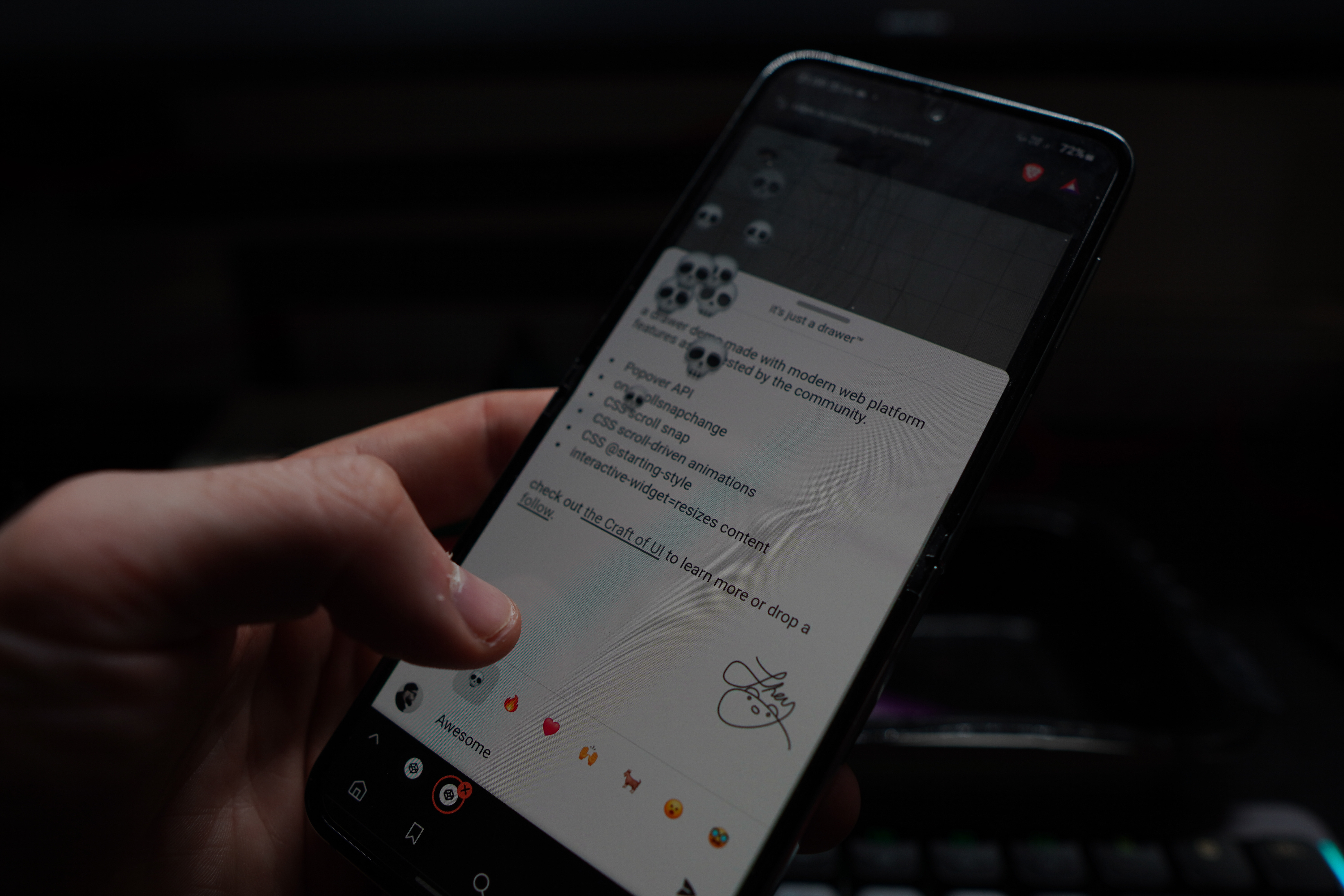

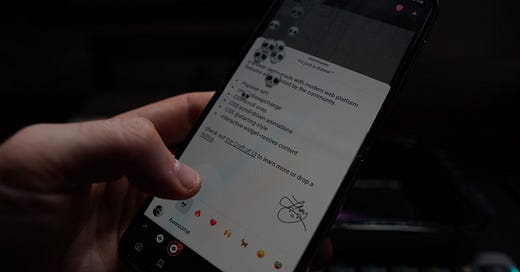

When looking for designs to play with, I loved the idea of this sticky reaction bar that fired emojis. Some top padding on the drawer and display: flex gives us the effect. The content flexes(flex: 1) with overflow: auto. The reaction bar sticks to the bottom on scroll with position: sticky. Add a little full-screen canvas and you've got some emoji bursts for fun. When you let the browser handle as much of the not-so-fun stuff as possible, you can focus on building the fun things!

Demo Link: codepen.io/jh3y

Takeaways

Using the Popover API for disclosures
@starting-style for entry/exit animations
scroll-snap tricks with scrollsnapchange
CSS scroll-driven backdrops with @property
VisualViewport resize listening and interactive-widget=resize-contents
Grab a device! Check things out in the iOS Simulator or use USB debugging on Android via Chrome
How to cater for browser support issues with APIs like IntersectionObserver and requestAnimationFrame
